Line Impedance Stabilization Networks

Description
Specs

DESCRIPTION

DESCRIPTION
The Solar Electronics LISNs use a series inductor between the test sample and the power source to provide the impedance-versus-frequency characteristic. A coaxial connector with DC isolation is provided for connection to the associated frequency selective EMI meter. The power source end of the inductor is bypassed to ground.

Due to the large current-carrying capability of some LISNs, it is not always practical to use a switch for changing inductance values. Instead, some models are equipped with a high current pin plug-and-jack combination for quickly connecting and disconnecting a network and substituting another. This nylon insulated pin plug-and-jack arrangement is a safety feature, well isolated from inadvertent short circuits, providing protection to operating personnel.

Current ratings up to 200 A are available in 50 µH styles and 500 A in 5 µH styles (see chart under Specifications tab).

EMI specifications require one LISN in each ungrounded power lead. Even though the neutral is considered "ground" if it is not connected to chassis inside the unit under test, the lead must be tested with an LISN. Therefore, use two LISNs in DC or single phase AC applications, three LISNs for delta-connected three phase circuits, and four LISNs for Y-connected three phase circuits.

Breakdown of Solar type numbers

8602

- 50

- TS

- 50

- N

RF connector:
BNC	=	Bayonet Neill Concelman
N	=	Neill

Current rating in amperes (A)

Terminals:
BP	=	Binding Post
PJ	=	Plug and Jack
R	=	Receptacle
TS	=	Terminal Screw

Series inductance in microhenries (µH)

Solar base model number

SPECIFICATIONS

Part Number	Specifications	Ind. µH	Coupling Cap.	Current Amps	Volts DC	Volts 50-60 Hz Line/GND	Volts 400 Hz	Volts 800 Hz	Freq. Min.	Freq. Max.	Circuit	Case Size
2119-5-TS-50-N Data sheet ‡	FCC Part 18, MIL-STD-462 Notice 3, CISPR 25*	5 µH	0.10 µF	50	600	500	240	—	100 kHz	100 MHz	Single	1
2203-5-TS-25-N Data sheet ‡	FCC Part 18, DO-160G, DEF STAN 59-411 Part 3, CISPR 25*	5 µH	0.10 µF	25	600	500	240	125	1 kHz	1 GHz	Single	1
22018-5-TS-500-N Data sheet ‡	RTCA-DO-160G	5 µH	0.10 µF	500	1000	500	500	450	10 kHz	1 GHz	Single	1
2309-50-BP-25-N Data sheet ‡	MIL-STD-461D/E/F/G	50 µH	0.25 µF	25	400	270	135	—	10 kHz	100 MHz	Dual	7
2402-50-TS-50-N Data sheet ‡	MIL-STD-461D/E/F/G	50 µH	0.25 µF	50	1000	500	240	—	10 kHz	50 MHz	Single	3
2602-50-TS-25-N Data sheet ‡	MIL-STD-461D/E/F/G	50 µH	0.25 µF	25	400	270	135	—	10 kHz	50 MHz	Single	1
2704-5-PJ-25-BNC Data sheet ‡	CISPR 25*	5 µH	0.10 µF	25	400	270	135	—	100 kHz	100 MHz	Single	1
2704-5-TS-25-BNC Data sheet ‡	CISPR 25*	5 µH	0.10 µF	25	400	270	135	—	100 kHz	100 MHz	Single	1
2909-5-TS-200-N Data sheet ‡	CISPR 25*	5 µH	0.10 µF	200	400	270	250	—	100 kHz	200 MHz	Single	3†
2917-5-TS-100-N Data sheet ‡	MIL-STD-462 Notice 3, FCC Part 18, DO-160G, CISPR 25*	5 µH	0.10 µF	100	600	500	240	—	10 kHz	400 MHz	Single	3
Part Number	Specifications	Ind. µH	Coupling Cap.	Current Amps	Volts DC	Volts 50-60 Hz Line/GND	Volts 400 Hz	Volts 800 Hz	Freq. Min.	Freq. Max.	Circuit	Case Size
2918-5-TS-500-N Data sheet ‡	DO-160G	5 µH	0.10 µF	500	1000	600	480	240	10 kHz	1 GHz	Single	4
8012-50-R-25-BNC Data sheet ‡	FCC Part 15	50 µH	0.10 µF	25	200	135	75	—	10 kHz	50 MHz	Dual	1
8028-50-BP-25-BNC Data sheet ‡	MIL-STD-461D/E/F/G	50 µH	0.25 µF	25	400	270	135	—	10 kHz	50 MHz	Single	1
8116-50-PJ-100-N Data sheet ‡	MIL-STD-461D/E/F/G	50 µH	0.25 µF	100	400	270	135	—	10 kHz	30 MHz	Single	3†
8116-50-TS-100-N Data sheet ‡	MIL-STD-461D/E/F/G	50 µH	0.25 µF	100	400	270	135	—	10 kHz	30 MHz	Single	3†
8309-5-TS-100-N Data sheet ‡	MIL-STD-462 Notice 3, FCC Part 18, DO-160C	5 µH	0.10 µF	100	600	500	480	—	150 kHz	65 MHz	Single	3
8610-50-PJ-100-N Data sheet ‡	MIL-STD-461D/E/F/G	50 µH	0.25 µF	100	600	500	240	—	10 kHz	30 MHz	Single	3†
8610-50-TS-100-N Data sheet ‡	MIL-STD-461D/E/F/G	50 µH	0.25 µF	100	600	500	240	—	10 kHz	30 MHz	Single	3†
Part Number	Specifications	Ind. µH	Coupling Cap.	Current Amps	Volts DC	Volts 50-60 Hz Line/GND	Volts 400 Hz	Volts 800 Hz	Freq. Min.	Freq. Max.	Circuit	Case Size
8616-5-PJ-200-N Data sheet ‡	MIL-STD-462 Notice 3, FCC Part 18, DO-160C	5 µH	0.10 µF	200	400	270	135	—	150 kHz	65 MHz	Single	3†
8616-5--200-N Data sheet ‡	MIL-STD-462 Notice 3, FCC Part 18, DO-160C	5 µH	0.10 µF	200	400	270	135	—	150 kHz	65 MHz	Single	3†
8616-50-PJ-200-N Data sheet ‡	MIL-STD-461D/E/F/G, ANSI C63.4 (2003)	50 µH	0.25 µF	200	400	270	135	—	10 kHz	30 MHz	Single	3†
8616-50-TS-200-N Data sheet ‡	MIL-STD-461D/E/F/G, ANSI C63.4 (2003)	50 µH	0.25 µF	200	400	270	135	—	10 kHz	30 MHz	Single	3†
8902-5-TS-500-N Data sheet ‡	FCC Part 18, DO-160G, DEF STAN 59-411 Part 3	5 µH	0.10 µF	500	700	500	240	—	1 kHz	1 GHz	Single	4
8905-50-TS-50-N Data sheet ‡	MIL-STD-461D/E/F/G	50 µH	0.25 µF	50	400	270	135	—	10 kHz	200 MHz	Single	3
9117-5-PJ-50-N Data sheet ‡	MIL-STD-462 Notice 3, FCC Part 18, DO-160G, DEF STAN 59-411 Part 3, CISPR 25*	5 µH	0.10 µF	50	600	500	240	115	1 kHz	1 GHz	Single	1
9117-5-TS-50-N Data sheet ‡	MIL-STD-462 Notice 3, FCC Part 18, DO-160G, DEF STAN 59-411 Part 3, CISPR 25*	5 µH	0.10 µF	50	600	500	240	115	1 kHz	1 GHz	Single	1
9233-50-PJ-50-N Data sheet ‡	MIL-STD-461D/E/F/G	50 µH	0.25 µF	50	400	270	135	—	10 kHz	50 MHz	Single	3
Part Number	Specifications	Ind. µH	Coupling Cap.	Current Amps	Volts DC	Volts 50-60 Hz Line/GND	Volts 400 Hz	Volts 800 Hz	Freq. Min.	Freq. Max.	Circuit	Case Size
9233-50-TS-50-N Data sheet ‡	MIL-STD-461D/E/F/G	50 µH	0.25 µF	50	400	270	135	—	10 kHz	50 MHz	Single	3
9247-50-TS-50-N Data sheet ‡	FCC Part 15, CISPR 16-1, ANSI C63.4 (1992)	50 µH	0.10 µF	50	800	500	240	—	10 kHz	50 MHz	Single	3
9252-50-R-25-BNC Data sheet ‡	MIL-STD-461D/E/F/G	50 µH	0.25 µF	25	400	270	135	—	10 kHz	50 MHz	Dual	7
9331-50-PJ-200-N Data sheet ‡	MIL-STD-461D/E/F/G	50 µH	0.25 µF	200	800	500	240	—	10 kHz	30 MHz	Single	3†
9331-50-TS-200-N Data sheet ‡	MIL-STD-461D/E/F/G	50 µH	0.25 µF	200	800	500	240	—	10 kHz	50 MHz	Single	3†
9348-50-R-25-BNC Data sheet ‡	CISPR 16-1-2 Ed. 1.2	50 µH	0.25 µF	25	400	270	135	—	9 kHz	30 MHz	Dual	7
9408-50-R-25-BNC Data sheet ‡	MIL-STD-461D/E/F/G	50 µH	0.25 µF	25	600	500	270	—	10 kHz	30 MHz	Dual	7
9509-50-R-25-BNC Data sheet ‡	CISPR 16-1-2 Ed. 1.2	50 µH	0.25 µF	25	700	500	270	—	9 kHz	30 MHz	Dual	7
9623-50-BP-25-BNC Data sheet ‡	MIL-STD-461D/E/F/G	50 µH	0.25 µF	25	400	270	135	—	10 kHz	50 MHz	Single	1
9623-50-PJ-25-BNC Data sheet ‡	MIL-STD-461D/E/F/G	50 µH	0.25 µF	25	400	270	135	—	10 kHz	50 MHz	Single	1
Part Number	Specifications	Ind. µH	Coupling Cap.	Current Amps	Volts DC	Volts 50-60 Hz Line/GND	Volts 400 Hz	Volts 800 Hz	Freq. Min.	Freq. Max.	Circuit	Case Size
9629-50-BP-25-BNC Data sheet ‡	MIL-STD-461D/E/F/G	50 µH	0.25 µF	25	800	500	240	—	10 kHz	30 MHz	Single	1
9629-50-TS-25-BNC Data sheet ‡	MIL-STD-461D/E/F/G	50 µH	0.25 µF	25	800	500	240	—	10 kHz	30 MHz	Single	1
9861-50-BP-25-BNC Data sheet ‡	MIL-STD-461D/E/F/G	50 µH	0.25 µF	25	400	270	135	—	10 kHz	50 MHz	Dual	7
9867-5-TS-50-N Data sheet ‡	DO-160G, DEF STAN 59-411 Part 3	5 µH	0.10 µF	50	400	270	135	—	1 kHz	1 GHz	Single	1
9924-5-TS-100 Data sheet ‡	ISO 7637-2 (circuit isolated from case)	5 µH	0.10 µF	100	600	500	480	—	100 kHz	100 MHz	Single	3
21106-50-BP-25-BNC Data sheet ‡	CISPR 16-1-2 Ed. 1.2	50 µH	0.10 µF	25	400	270	135	—	150 kHz	30 MHz	Single	1
21107-50-TS-50-N Data sheet ‡	CISPR 16-1-2 Ed. 1.2	50 µH	0.10 µF	50	400	270	135	135	150 kHz	30 MHz	Single	3
21115-50-TS-100-N Data sheet ‡	CISPR 16-1-2 Ed. 1.2	50 µH	0.10 µF	100	800	500	240	—	150 kHz	30 MHz	Single	3†
21208-50-TS-100-N Data sheet ‡	MIL-STD-461D/E/F/G	50 µH	0.25 µF	100	1000	600	270	—	10 kHz	30 MHz	Single	3†
21214-5-TS-250-N Data sheet ‡	DO-160G, DEF STAN 59-411 Part 3	5 µH	0.10 µF	250	400	270	135	—	1 kHz	400 MHz	Single	3†
21314-50-R-25-BNC Data sheet ‡	CISPR 16-1-2 Ed. 1.2	50 µH	0.10 µF	25	400	270	135	—	150 kHz	30 MHz	Dual	7
21407-5-TS-50-N Data sheet ‡	CISPR 25*	5 µH	0.10 µF	50	600	500	240	—	100 kHz	100 MHz	Single	3
21601-50-TS-50-N Data sheet ‡	CISPR 16-1-2 Ed. 1.2	50 µH	0.25 µF	50	400	270	135	—	9 kHz	30 MHz	Single	4
21604-5-TS-500-N Data sheet ‡	CISPR 25 (2016)	5 µH	0.10 µF	500	700	500	240	—	100 kHz	500 MHz	Single	4
21702-5-PJ-50-N Data sheet ‡	MIL-STD-461F/G (alt. 5 μH LISN, Appendix A:CE101 & CE102)	5 µH	0.1 µF	50	800	500	300	135	150 kHz	100 MHz	Single	1
21702-5-TS-50-N Data sheet ‡	MIL-STD-461F/G (alt. 5 μH LISN, Appendix A:CE101 & CE102)	5 µH	0.1 µF	50	800	500	300	135	150 kHz	100 MHz	Single	1
21804-5-TS-500-N Data sheet ‡	CISPR 25 (2016)	5 µH	0.10 µF	500	1200	500	500	500	100 kHz	500 MHz	Single	4
21847-50-TS-100-N Data sheet ‡	FCC Part 15, CISPR 16-1, ANSI C63.4 (1992)	50 µH	0.10 µF	100	1000	500	500	450	10 kHz	50 MHz	Single	3†

* CISPR 25 replaces DIN 57879-3

Case sizes (w x h x l)
1: 5.26" x 5.29" x 10.00" (13.36 cm x 13.44 cm x 25.40 cm). Overall length with base plate: 12.00" (30.48 cm).
2: 7.00" x 7.00" x 8.25" (17.78 cm x 17.78 cm x 20.96 cm).
3: 10.29" x 9.25" x 13.00" (26.14 cm x 23.50 cm x 33.02 cm). Overall length with base plate: 17.00" (43.18 cm)
	3†: Equipped with 6.50” (16.51 cm) 50-60 Hz ventilating fan. Specify voltage: 110V/115V or 220V/230V.
		Overall length with base plate and fan overhang: 21.50” (54.61 cm).
4: 10.29" x 9.25" x 20.00" (26.14 cm x 23.50 cm x 50.80 cm). Overall length with base plate: 23.75” (60.33 cm).
5: 3.12" x 1.75" x 3.87" (7.93 cm x 4.45 cm x 9.83 cm).
6: 2.75" x 2.45" x 5.70" (6.99 cm x 6.22 cm x 14.48 cm).
7: 13.48" x 7.25" x 13.25" (34.24 cm x 18.42 cm x 33.66 cm). Overall length with base plate: 17.25” (43.82 cm).

‡ Data sheets are best viewed in Adobe Acrobat Reader

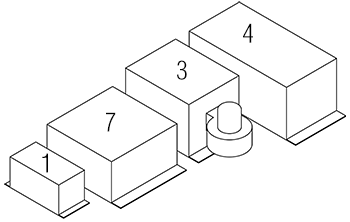

Case size comparison of models currently in production
