Type 2201-2 Impedance Matching Transformer

for DO-160 Section 17

for use with Solar Type 7054-2 Spike Generator

  DESCRIPTION top of page button




  SPECIFICATIONS top of page button
spacer
REQUIREMENTS
Tr: ≤ 2 µS (0 to crest)
Duration: > 10 µS (0 to crossover)
Generator impedance: 50 Ω load generator with 50 Ω. Voltage must drop to half the open circuit voltage ± 10% (40.9 Ω to 61.1 Ω)
Peak voltage: Up to 1000 V peak

Due to core saturation the EUT current must not exceed 7 A for DC to 60 Hz and 3 A for 400 Hz.

  FIGURES top of page button
Solar Type 2201-2 fig-1

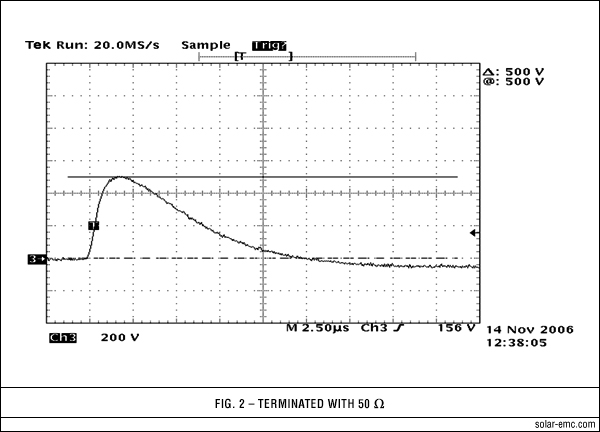

Solar Type 2201-2 fig-2
