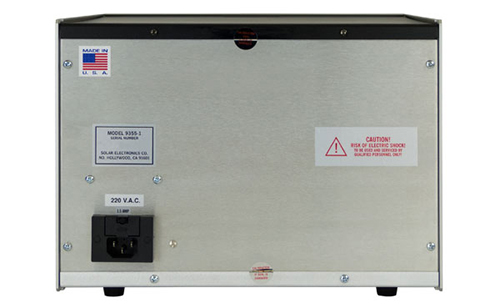

Model 9355-1 Pulse Generator

for MIL-STD-461-D/E/F/G CS115 susceptibility test
Type 7334-1 Loop Sensor
spacer
Type 7334-1 Loop Sensor Type 7334-1 Loop Sensor


  DESCRIPTION top of page button

APPLICATION
The Solar Model 9355-1 Pulse Generator is designed to provide impulse excitation by means of an injection probe placed around interconnecting cables or power wires. The unit uses a charged transmission line (50 Ω) to generate a pulse with less than 2 nS rise and fall time, and duration of approximately 35 nS, calibrated in a 50 Ω fixture to deliver up to 5 A at a rate of 30 pulse per second for one minute as required by MIL-STD-461D/E/F/G, Test Method CS115.

DESCRIPTION
The charged line potential of the Model 9355-1 is adjustable from less than 10 V to approximately 1900 V. The repetition rate is variable from less than 1.0 pulse per second to 120 pulse per second, or single pulses manually triggered by a panel mounted pushbutton. Digital displays monitor the charging voltage and pulse repetition rate.

FEATURES
• Panel mounted digital meters monitor the adjustable charged line voltage and pulse repetition rate
• Adjustable pulse rate from less than 1.0 pulse per second to 120 pulse per second, and manual triggering via front panel pushbutton
• Charged line output voltage adjustable from 10 V to ≈1900 V
QR Code generator

  SPECIFICATIONS top of page button
spacer
OUTPUT PULSE
Charging voltage: Adjustable from 0 to ≈1900 V
Rise/fall time: <2 ns
Duration time: 35 ns
Pulse repetition rate: <1.0 pulse per second to 120 pulse per second
Polarity: ± selectable
Output load: 50 ± j 0 Ω
Dimensions: 12.25" wide x 8.7" high x 13" deep (31.1 cm x 21.1 cm x 33.0 cm)
Weight: 27 pounds (12.24 kg)
Shipping weight: 30 pounds (13.60 kg)

  USEFUL  ACCESSORIES top of page button
spacer
ACCESSORIES RECOMMENDED FOR CS115 TESTING
Solar Type 9233-50-TS-50-N Line Impedance Stabilization Network
Solar Type 9125-1 Calibration Fixture
Used to calibrate probes with a window size from 1.25" to 1.50" and a frequency range of 20 Hz to 500 MHz
Solar Type 9142-1N Current Injection Probe
with a frequency range of 2 MHz to 500 MHz, 200 W
Solar Type 9123-1N Current Monitor Probe
with a frequency range of 10 kHz to 500 MHz, 1.25" window
Solar Type 9410-1 High Voltage 40 dB Attenuator
The Type 9410-1 high voltage 50 ohm attenuator has an insertion loss of 40 dB ± 1.5 dB from 100 Hz to 100 MHz and 40 dB ± 3 dB from 100 MHz to 1 GHz and an average wattage dissipation capability of 2 watts. The attenuator will reduce the pulse voltage by a factor of 100 to 1 (40 dB). 250 volts will be developed when 5 amperes is flowing through the 50 ohm input of the attenuator. Therefore, once the attenuation factor is applied, the voltage present at the output of the attenuator will be 2.5 volts. (250 volts – 40 dB = 2.5 volts). See your oscilloscope manual for more details on 50 ohm input.
Solar Type 9841-1 1000 V Termination
50 Ω coaxial 1 W average power. Typical input VSWR in a 50 Ω system under 1.5 from DC to 1 GHz
