Type 2201-1 Impedance Matching Transformer
for DO-160 Section 17

for use with Solar Type 7054-2 Spike Generator

  DESCRIPTION top of page button




  SPECIFICATIONS top of page button
spacer
REQUIREMENTS
Tr: ≤ 2 µS (0 to crest)
Duration: > 10 µS (0 to crossover)
Generator impedance: 50 Ω load generator with 50 Ω. Voltage must drop to half the open circuit voltage ± 10% (40.9 Ω to 61.1 Ω)
Peak voltage: Up to 600 V peak

Due to core saturation the EUT current must not exceed 12 A for 50 Hz, 60 Hz and 6 A for 400 Hz.
  FIGURES top of page button

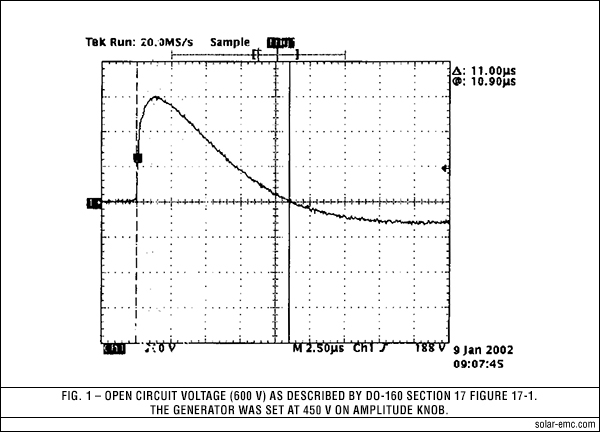

Solar Type 2201-1 fig-1

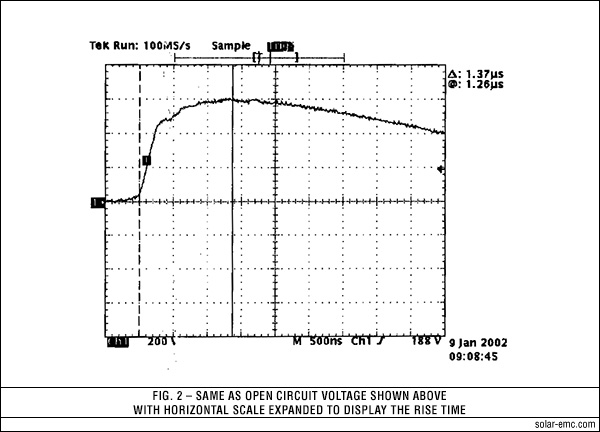

Solar Type 2201-1 fig-2

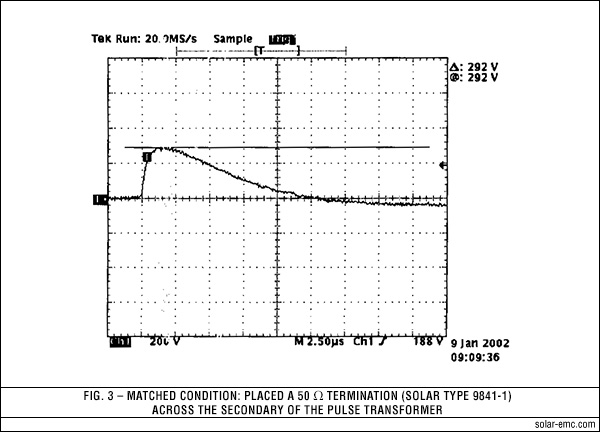

Solar Type 2201-1 fig-3
