Type 9123-1N Current Probe
Type 7334-1 Loop Sensor
back arrow
next arrow
QR Code generator

  SPECIFICATIONS top of page button
spacer
A: 4.5" (11.43 cm) D: 0.75" (1.90 cm)
B: 3.0" (7.60 cm) W: 1.25" (3.17 cm)
C: 1.375" (3.49 cm)
Frequency range: 10 kHz to 500 MHz

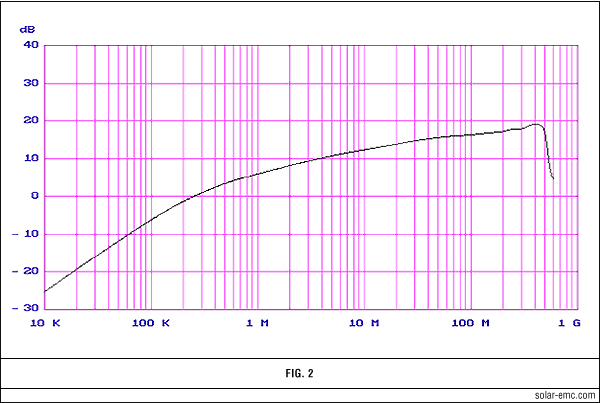

Transfer impedance (ZT): 1.0 to 5.0 Ω above 300 kHz
Output load impedance: 50 + j 0 Ω
Continuous signal current (CW): 40 A
Maximum power current: 200 A DC to 400 Hz
Maximum power voltage: Limited by the conductor under test
Peak pulse current: 60 A maximum
Probe circuit: Inserted primary toroidal transformer
Connector: Type "N" female
Style: Clamp on
Weight: 1.2 pounds (0.55 kg)

  FIGURES top of page button

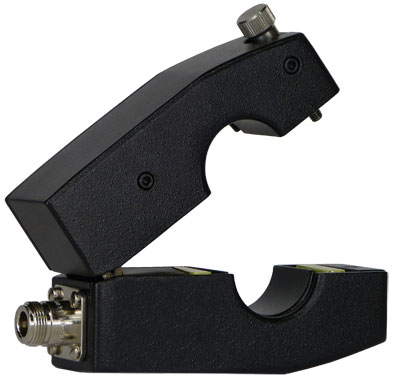

Solar Type 9123-1N
