10 µF Feed-Thru Capacitors

for RFI/EMI test setups

Solar Capacitor group
  DESCRIPTION top of page button

APPLICATION
Starting with the Solar Type 6512-106R Feed-Thru Capacitor, Solar Electronics has a series of 10 μF feed-thru capacitors which are specially designed to be used in RFI/EMI test setups such as MIL-STD-461A/462A. Many other specifications, such as RTCA DO-160G, now call for their use. In this application the capacitor provides a low RF impedance across the power source so that EMI currents produced by the equipment under test can be accurately measured with a current probe.

The feed-thru capacitor is used for added filtering in conjunction with line impedance stabilization networks. The 10 µF feed-thru capacitor can also be used as a power-line filter installed in the wall of a shielded enclosure or equipment cabinet. The capacitor provides adequate insertion loss without suffering the power current saturation limitation of conventional filters which employ toroidal inductors.

DESCRIPTION
Solar feed-thru capacitors are highly reliable and ruggedly constructed units for general use in screen rooms and other environments. The metal case with four husky threaded inserts lends itself to convenient installation with minimal effort.

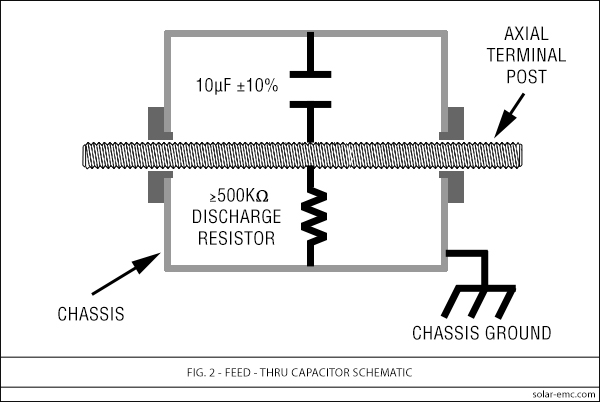

The threaded feed-thru stud will accommodate power current of the listed rating without heating or voltage loss. Table 2 indicates available current and voltage ratings of the various Solar 10 µF Feed-Thru Capacitors. All have low dissipation factors, high temperature ratings, high insulation resistance, doubly rated dielectric strength, and long life characteristics. To satisfy safety requirements, a bleeder resistor is included within the capacitors, which serves to discharge the capacitors when applied voltage is removed.

FEATURES
High insulation resistance over a wide temperature range
Excellent stability with long life
Built-in discharge resistor for safety
Designed for bulkhead or bench mounting
QR Code generator

  SPECIFICATIONS top of page button
spacer
Capacitance: 10 µF
Tolerance: ±10%
Temperature: -55°C to +70°C @ rated voltage +105°C @ 50% of rated voltage
Dissipation factor: Less than 1% at 25°C (measured at 120 Hz)
Dielectric strength: Twice the rated VDC @ 25°C for two minutes
Insulation resistance: 2500 MΩ @ 25°C rated voltage for two minutes. (Insulation resistance greater than 500 kΩ cannot be measured due to the internal bleeder resistor)
Bleeder resistor: A minimum 500 kΩ resistor included as specified in SAE document ARP-936
Life test: Will withstand the rated DC voltage @ 85°C for 250 hours
Construction: Extended foil coaxial winding protected with a thin polyester film

  FIGURES top of page button

Solar Feed-Thru-cap waveform

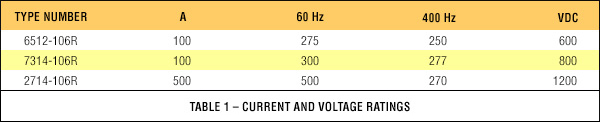

Solar Feed-Thru-capvotlage ratings
